6-Door ABS Locker for Small Gyms: Rustproof Waterproof Construction for Poolside Changing Rooms

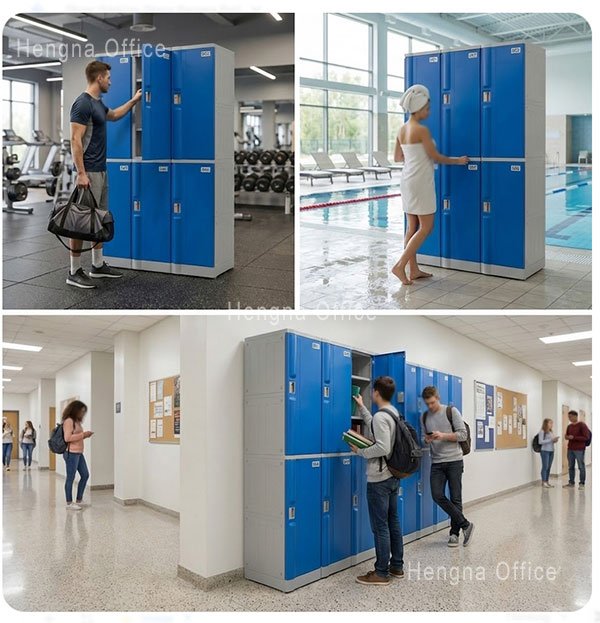

Small gyms, community pools, and yoga studios share one problem: storage that has to survive humidity without rusting out in two years. The 6-door ABS plastic locker solves this at the material level. ABS engineering plastic does not rust, so it holds up in steamy changing rooms and poolside decks where coated steel fails. This guide covers who it fits, how it compares to steel, installation details, and how to order.
Why 6 Doors Work for Compact Venues
A 6-door unit (3 columns x 2 tiers) gives each user one tall compartment. Each door is 930 mm high, enough to hang a towel, swimsuit, and street clothes together on the same rod. Six people per unit. Line three or four units along a wall and you cover 18 to 24 daily users without eating floor space.
The footprint is 1,146 x 500 mm, the same as the 9-door and 12-door models from the same factory. The difference is compartment height, not floor area. If your members hang wet gear instead of folding it into a short box, the 6-door’s taller doors are the better fit. Yoga studios, spin rooms, and small gyms with afternoon staff showers benefit from the height.
The 80 mm elevated base lifts contents off damp floors. In poolside rooms that get mopped and splashed constantly, that gap keeps stored belongings dry and makes cleaning underneath easy.
ABS vs Steel in Wet Areas
Pool and gym projects keep repeating the same pattern: buyers spec cheap steel lockers to save upfront cost, and within six months the corners blister, the door pivots seize, and a wet hand pulls off a flake of paint on the way out. Chlorine vapor plus constant humidity defeats coated steel in under two years. Replacing a locker room then costs double the original purchase, including labor and disposal.
ABS is an engineering thermoplastic, and its behavior in water is fundamentally different:
- Does not rust, period. Not “resists rust” with a coating promise. The material itself has no iron to corrode, even submerged.
- Injection-molded one-piece construction. Virgin ABS is molded as single pieces with no welded seams and no sheet-metal joints for moisture to creep into.
- UV-stabilized surface. Chlorinated, sun-exposed pool decks yellow and embrittle many plastics over time. The UV stabilization in this cabinet delays that process, keeping the color stable.
- About half the weight of steel. Moving lockers to a second-floor studio, or rearranging a changing room for peak season, becomes a two-person job instead of a forklift discussion.
Six Independent Doors With Mixed Locks
Each of the six doors takes its own lock, and lock types can be mixed on one unit:
- Mechanical key locks for staff areas.
- RFID cards for front desk management.
- Digital code locks for members who prefer remembering a code.
- Padlock hasps for visitor lockers with cheap user-supplied padlocks.
This mixed approach matters in real venues: a community pool needs card access for regular members at the front desk row, keys for the staff changing area, and padlocks for day-visitors who pay at the gate. One cabinet line can serve all three.
Inside each compartment, a hanging rod and ventilation slot let damp swimwear dry instead of souring. Eight standard colors match the locker room visually, with Pantone-matched custom colors available for branded facilities.
A nameplate window sits on every door for numbering later without drilling. When the venue renumbers lockers for a new season, staff simply swap the insert.
Installation and Anchoring
Tool-free assembly. Mortise-tenon joints lock the columns together without screws or adhesive. Two staff members assemble a row by hand.
Floor clearance. The 80 mm base keeps the cabinet out of standing water and makes floor cleaning continuous under the unit.
Wall anchoring for busy rooms. For high-traffic rooms, anchor the top row to the wall. Pre-drilled points are standard, so the anchor install takes minutes.
Long runs. Units combine side by side in clean runs, so a 12-door row and an 18-door row can share one wall using the same base modules.
Specifications at a Glance
| Configuration | 3 columns x 2 tiers |
|---|---|
| Single door | 930 x 382 x 500 mm (H x W x D) |
| Overall size | 1,940 x 1,146 x 500 mm (H x W x D) |
| Base height | 80 mm elevated |
| Material | Virgin ABS engineering plastic |
| Construction | Steel-mold injection, one-piece |
| Joints | Mortise-tenon, no screws or glue |
| Door width options | 290 / 320 / 382 / 480 mm |
| Depth options | 390 / 420 / 500 mm |
| Colors | 8 standard + Pantone custom |
| Lock types | Mechanical / RFID / Code / Padlock, mixable |
| Warranty | 1 year |
| Certification | CE |
| MOQ | 1 unit |
Planning the Locker Room
Count peak users, not members. A gym with 400 registered members might only have 40 people on-site at peak. Estimate the simultaneous peak: that is the number of compartments you need, plus 10 percent.
Put the tallest doors near the pool exit. Wet members hanging towels need the 930 mm doors closest to the showers, so drips stay in the wet zone.
Leave walkway clearance. The 500 mm depth plus door swing needs about 1 m of aisle in front of the row. Measure your narrowest point before ordering.
Use color zones for season passes. Two colors for annual members, one for day visitors makes front desk management visibly easier.
Maintenance Expectations
- No repainting. Color is molded in.
- No rust treatment. Nothing to sand or touch up.
- No hinge corrosion. The pivot system runs without lubrication schedules.
- Quick cleaning. Wet surfaces wipe down; graffiti releases with mild solvent.
Common Questions From Facility Owners
What is the minimum order?
One unit. Sample orders are accepted so you can check the build before committing to a full run.
How do you price it?
Cost varies by door count, lock type, and color. Send the scenario and quantity; a quote returns within 24 hours.
What about warranty and after-sales?
One-year coverage on the full unit. Field failures are rare with ABS; replacement parts ship directly if something breaks.
Can you do OEM or ODM?
Yes. Silk-screen logo, custom packaging, and custom manuals are available. The factory has handled export programs before.
Lead time and packaging?
Standard configurations ship fast; custom builds follow production scheduling. Packing uses moisture film, corner protectors, and separate-part cartons so units arrive without cracks or surface damage.
Is it CE certified?
Yes, for European projects.
The 6-door ABS locker gives small gyms, pools, and studios exactly what coated steel cannot: material-level rustproofing in wet environments, tall compartments that hang wet gear, mixed locks for different user groups, and maintenance that stays near zero. One row of units covers two dozen daily users, installs in a morning, and stays looking new through chlorine season after chlorine season.
When you spec a 6-door ABS locker, check two things: whether the material handles your humidity level and whether the locks can mix across user types. For model options and a quote, contact Luoyang Hengna Office Furniture Co., Ltd. at 13643895849. The team will size the unit to your venue.
